Summary

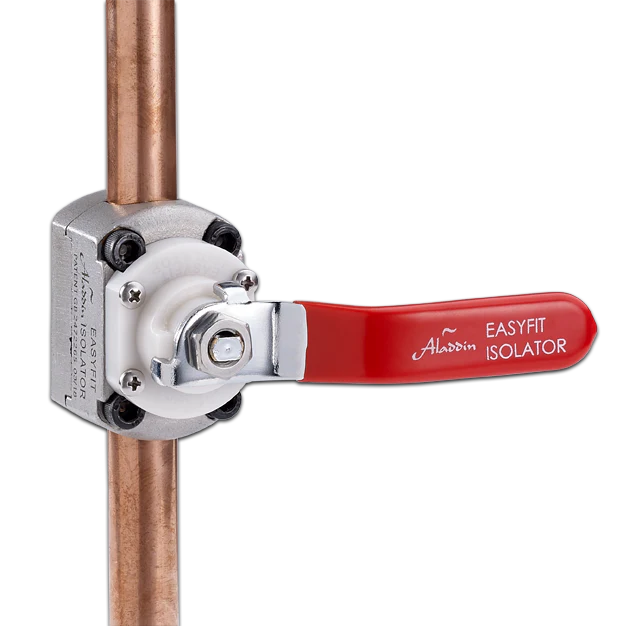

• The Aladdin EasyFit Isolator enables an isolation valve to be inserted quickly and safely in a pipe that can have cold or hot water flowing through it under high pressure.
• It provides an effective and robust product for all plumbers, maintenance engineers, water companies, housing associations and the DIY market.

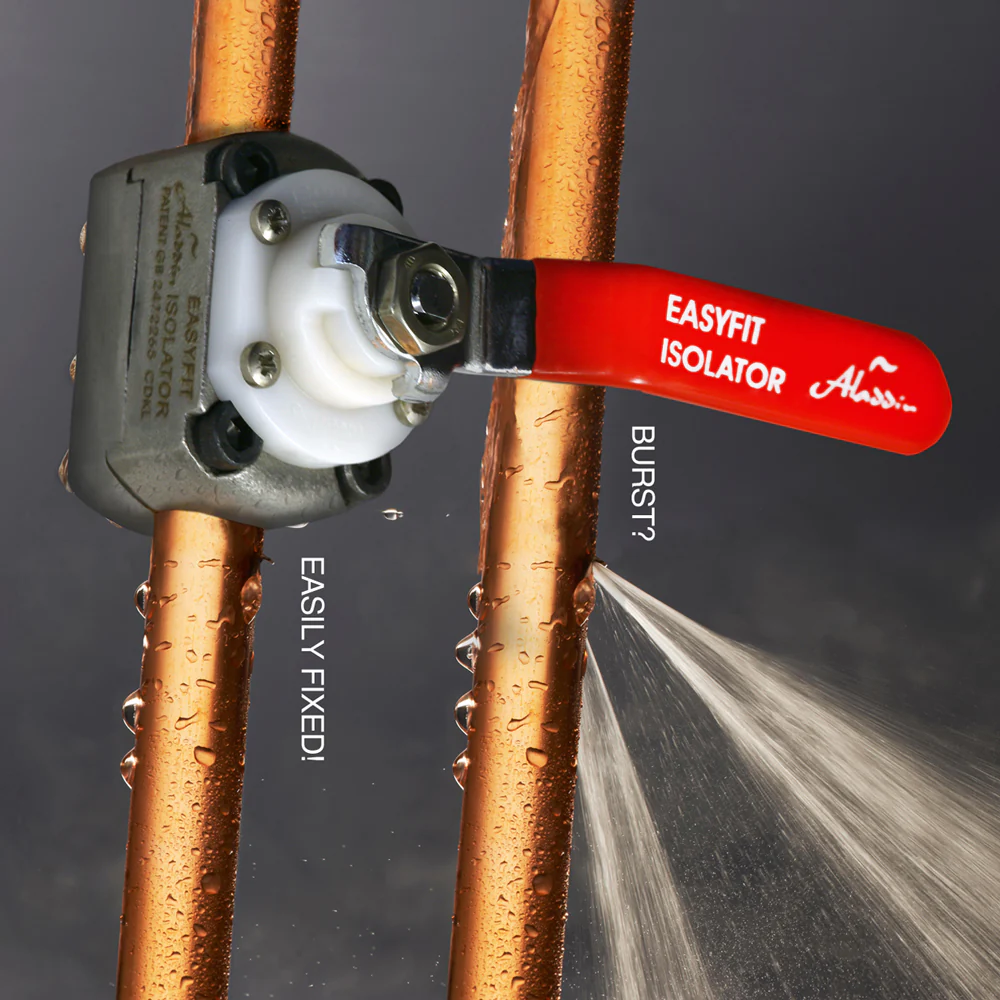

• Use the EasyFit Isolator as an emergency shut-off for a leaking pipe or when the mains stopcock is seized or inaccessible or when you need to isolate a mains water feed to a multi-occupancy building or to maintain a component in a heating system.
• The EasyFit Isolator saves time cooling, draining down, refilling and returning to de-aerate.
• The bigger the system, the bigger the saving.
• No more freezing kits and the risk that an ice plug will fail.
• ‘WRAS Approved Stopcock’.

Specification

• Suitable for metric pipes only
• 15mm Range (14.7mm – 15.045mm) Copper / PEX Multi-layer pipe.
• Operating pressure 16bar at 85°C
• WRAS Approved
• 10 year guarantee
• Stainless steel body
• Incorporates an on-off valve for ongoing use: Large bore – full flow.
• Must be installed using an Aladdin Tool Kit.

Benefits

• Reduces overall job costs versus freezing or draining down by time-saving.
• The Aladdin EasyFit Isolator takes 3-5 minutes to fit; the alternatives are either draining the system or using gas or electric pipe-freezing, any of which can take 30-50 minutes.
• Insterts a large-bore on/off valve, with a flow-rate reduction of just 2%.
• Avoids the flooding risk{ice-plug fail}and health & safety risk{freeze-burn}inherent in freezing.
• is a substabtially “greeber” solution than:
  – Gas-freezing :using the Aladdin EasyFit Isolator avoids emitting HFCs(hydrodluorocarbon gases), environmentally harmful “greenhouse” gases.
  – Draining-down: using the Aladdin EasyFit Isltator avoids wasting water; and for hot water, avoids the reqirement to consume energy to heat the re-fill.
  – Electric-freezing: avoids the consumption of considerable electricity as well as the capital cost or rental of the electric-freezing equipment.

Downloads

Easyfit Isolator Brochure 2019
